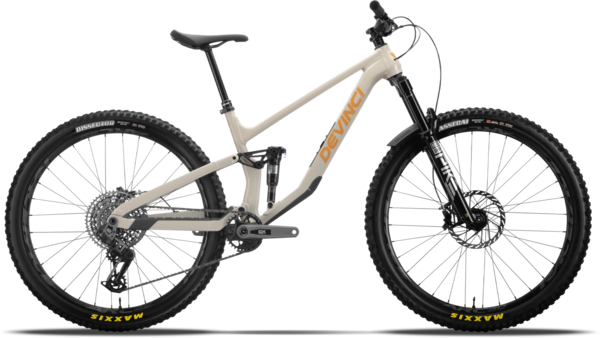

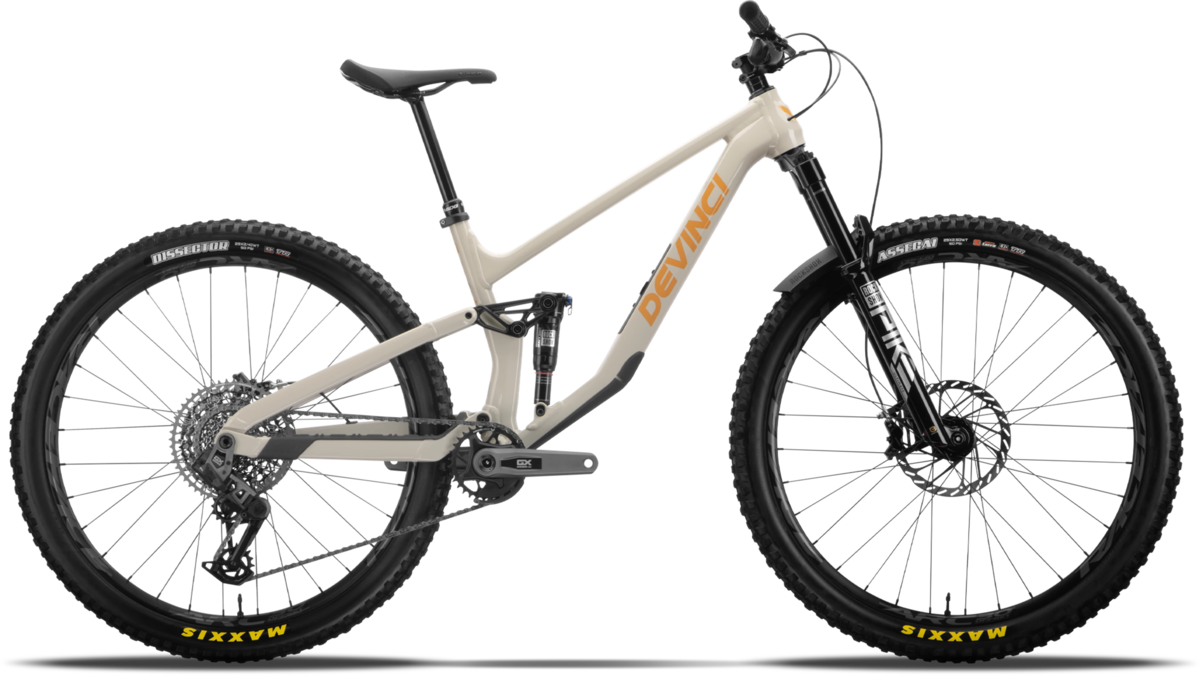

Devinci Troy ST GX AXS 12s
$6,999.99
Details
Lightning with a bottle cage.
The new Troy ST is the black belt in the Troy family. Insanely agile, the 130mm travel Split Pivot frame has updated geometry with size-specific chainstays that will have you riding stuff you thought you wouldn’t, fast. Its integrated downtube storage and go get ‘em attitude will lure you into all day rides on “once a year” trails, weekly. Full 29 in M-XL sizes and full 27.5 in XS-S, the ST isn’t trying to be anything it’s not. It’s made in Canada, guaranteed for life and ready to rumble. This bike is proof that with travel, sometimes less is more.
Wheel Sizing:
Size X-Small-Small: 27.5-inch
Size Medium - X-Large: 29-inch
| Frame Size | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| Seat Tube (MM) | 370 | 400 | 420 | 450 | 470 |
| Seat Angle (DEG) | 78.8 | 78.4 | 78.6 | 77.3 | 77.1 |
| Head Angle (DEG) | 65 | 65 | 65 | 65 | 65 |
| Top Tube (MM) | 537 | 563 | 593 | 630 | 654 |
| Reach (MM) | 423 | 445 | 468 | 488 | 508 |
| Chainstay (MM) | 435 | 435 | 435 | 445 | 445 |
| Wheel Base (MM) | 1158 | 1180 | 1221 | 1256 | 1280 |
| BB Height (MM) | 340 | 340 | 336 | 336 | 336 |
| Standover Height (MM) | 727 | 727 | 727 | 727 | 727 |
| Stack (MM) | 571 | 571 | 615 | 623 | 632 |
| Head Tube (MM) | 95 | 95 | 105 | 115 | 125 |
| Rider Height (CM) | 150 - 161 | 160-170 | 169-179 | 178-188 | 187-198 |
Specs
| Frame | Aluminum Optimum G04 130mm |
|---|---|
| Fork | RockShox Pike Ultimate Charger 3.1 RC2 SB 140 | 44 Offset |
| Rear Shock | Rockshox Deluxe Ultimate 185x47.5 |
| Rims | RaceFace ARC30 27.5 | 30mm inner | TR |
| Hubs |
Front: RaceFace Vault | 6bolts | TA 15x110mm Rear: RaceFace Vault | Boost 148x12 | XD | 6bolts |
| Spokes | Sapim Stainless 14G w/Nylok |
| Tires |
Front: Maxxis Assegai | 27.5x2.5WT | 3C | EXO | TR | MaxxTerra Rear: Maxxis Dissector | 27.5x2.4WT | 3C | Exo+ | TR | MaxxTerra |
| Bottom Bracket | SRAM DUB 73mm Threaded |
| Crankset | SRAM GX Eagle AXS | TType | 32T | 1Guard | Boost 148 | 170mm |
| Shifters | SRAM AXS POD | 12s |
| Rear Derailleur | SRAM GX Eagle AXS | T-Type | 12s |
| Cassette/Freewheel | SRAM XS1275 | T-TYPE | 12s | 10-52T |
| Chain | SRAM GX | T-Type | 12s |
| Brakes | SRAM Level Silver | 4 pistons |
| Rotors | SRAM HS2 | 200mm |
| Handlebars | RaceFace Next R35 | B:35mm | R:20mm | W:800mm |
| Tape/Grips | Devinci Performance | w/lock-on |
| Stem | RaceFace Turbine R35 | B:35mm | L:40mm | 0° |
| Headset | FSA Orbit | 1.5 | Zero Stack |
| Seatpost | SDG Tellis 31.6mm |
| Saddle | SDG BELAIR 3.0 |
| Pedals | Sold separately |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Stoneware Orange / Small / 27.5-inch | 883385241103 | FV24081252 |
| Stoneware Orange / Medium / 29-inch | 883385227183 | FV24081352 |
| Stoneware Orange / Large / 29-inch | 883385227176 | FV24081452 |
| Stoneware Orange / X-Large / 29-inch | 883385241196 | FV24081552 |
