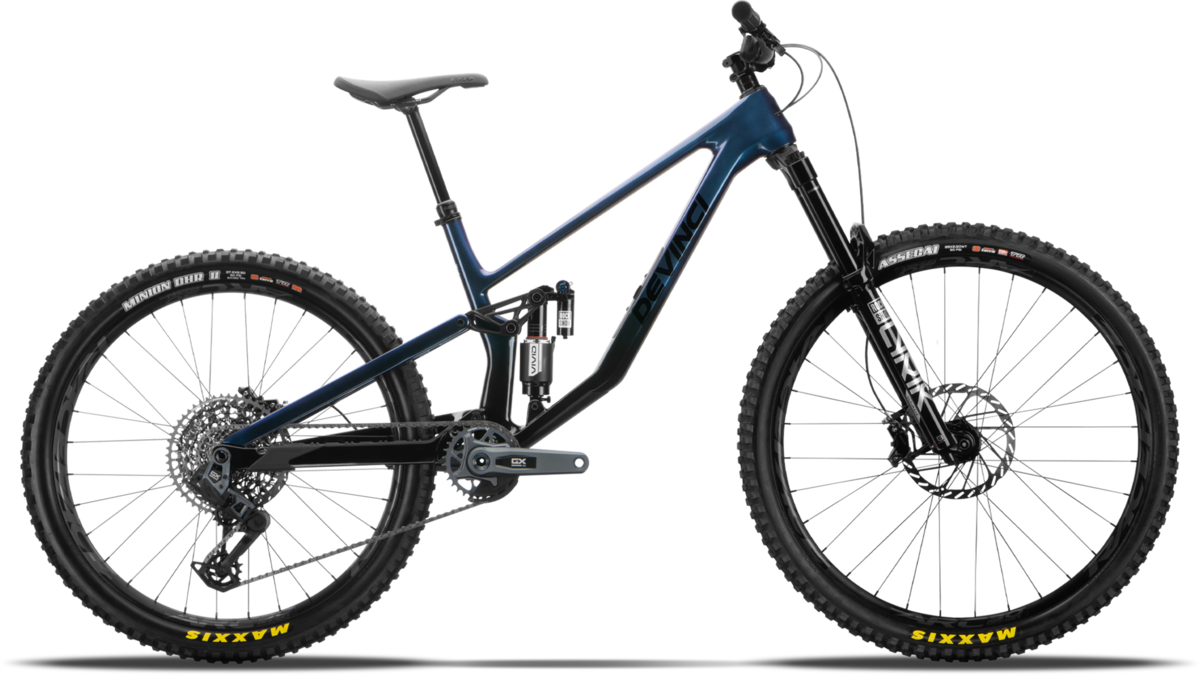

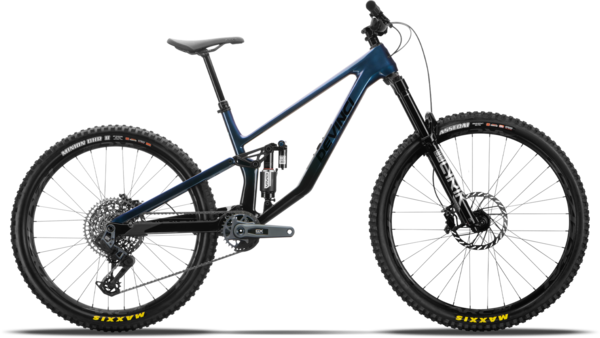

Devinci Troy Carbon GX AXS 12S

Devinci Troy Carbon GX AXS 12S
$8,499.99
Color: Incognito
Size: Select size
Wheel Size: 29-inch front / 27.5-inch rear
Please select options Unavailable

Details

Any trail. Every ride.

No excuse.

The everyday crusher of all trails. This Troy is our most advanced frame yet. But don’t let its Split Pivot design, streamlined profile and internal routing fool you. More than ever, Troy is built to shred. It has an updated geometry with size-specific chainstay lengths and comes stock with mixed wheels. It has more travel (150mm), so you’ll be looking for challenges instead of excuses. And its new ‘shed’ storage compartment in the downtube lets you pack all you need, without the need for a pack. Our quiver killer has a new set of instincts. Take one for a ride and see how far you can push it. You might never come back.

ROCK SHOX ULTIMATE SERIES
Offering maximum adjustability and featuring the latest innovations in damper technology, RockShox’s Ultimate series represents the pinnacle of the suspension manufacturer’s lineup. The Troy GX AXS is equipped with the Lyrik Ultimate fork, which includes the 3.1 Charger damper, ButterCups, and the DebonAir+ air spring. At the rear, RockShox’s Super Deluxe Ultimate with Linear XL Air Can takes care of rear shock duties, delivering incredible traction, tunability, and control.

MIXED WHEELS
The Troy comes stock with mixed wheels. Get all the snappy handling of 27.5" with the added traction, rollover and momentum of a 29" wheel up front. Still prefer full 29? The Geo-Saver mullet flip chip located at the lower mount of the shock lets you rock a 29’’ rear wheel without sacrificing the bike’s intended geometry.

Sizes:
Frame SizeSmallMediumLargeX-Large
Seat Tube (MM) 390 420 450 470
Seat Angle (DEG) 78.1 77.8 76.8 76.2
Head Angle (DEG) 64 64 64 64
Top Tube (MM) 568 594 631 656
Reach (MM) 440 460 480 500
Chainstay (MM) 435 435 440 445
Wheel Base (MM) 1206 1230 1260 1289
BB Height (MM) 343 343 343 343
Standover Height (MM) 708 708 708 708
Stack (MM) 612 622 631 640
Head Tube (MM) 95 105 115 125
Rider Height (CM) 160-170 169-179 178-188 187-198

Specs

Frame Carbon OSC 150mm
Fork Rockshox Lyrik Ultimate DB | 29 | 160 | 110x15 | 44OS |Black
Rear Shock Rockshox Vivid Ultimate | 185x55
Rims RaceFace ARC30 29 | 30mm inner | TR
Hubs Front: RaceFace Vault | 6bolts | TA 15x110mm
Rear: RaceFace Vault | Boost 148x12 | XD | 6bolts
Spokes Sapim Stainless 14G w/Nylok
Tires Front: Maxxis Assegai | 29x2.5WT | 3C | DD | TR | MaxxGrip
Rear: Maxxis Minion DHR II | 27.5x2.5WT | 3C | DD | TR | MaxxTerra
Bottom Bracket SRAM DUB 73mm Threaded
Crankset SRAM GX Eagle AXS | TType | 32T | 1Guard | Boost 148 | 165mm
Shifters SRAM AXS POD | 12s
Rear Derailleur SRAM GX Eagle AXS | T-Type | 12s
Cassette/Freewheel SRAM XS1275 | T-TYPE | 12s | 10-52T
Chain SRAM GX | T-Type | 12s
Brakes SRAM Code Silver
Rotors SRAM HS2 | 200mm
Handlebars RaceFace ERA 35 | B:35mm | R:40mm | W:800mm
Tape/Grips Devinci | w/lock-on
Stem RaceFace Turbine R35 | B:35mm | L:40mm | 0°
Headset FSA Orbit | 1.5 | Zero Stack
Seatpost SDG Tellis 31.6mm
Saddle SDG BELAIR 3.0
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN
Incognito / Small / 29-inch front / 27.5-inch rear 883385241813 FV25091222
Incognito / Medium / 29-inch front / 27.5-inch rear 883385239032 FV25091322
Incognito / Large / 29-inch front / 27.5-inch rear 883385238233 FV25091422
Incognito / X-Large / 29-inch front / 27.5-inch rear 883385244425 FV25091522
