Details

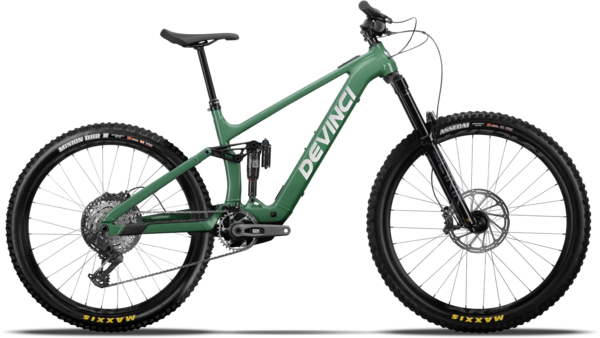

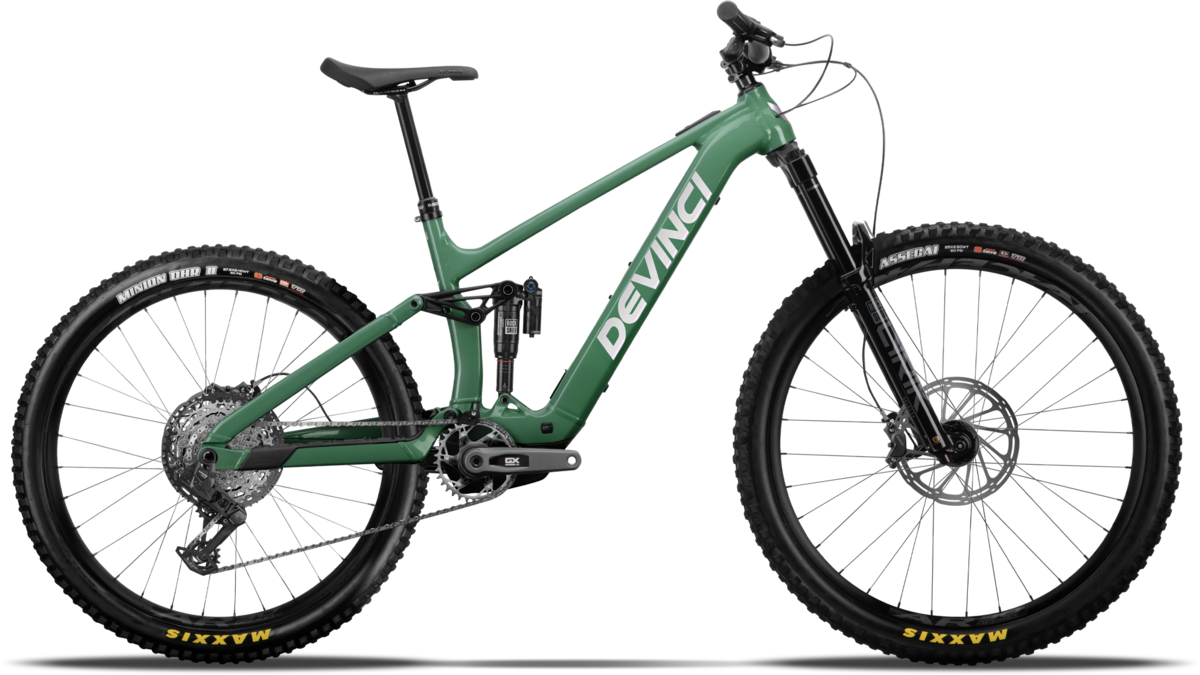

The E-Troy Lite is here
Climb in a flash and descend in style with this next-generation rig that combines Bosch wattage with the finesse and feel Devinci trail bikes are known for.
FEEL LIKE YOU'RE FLOATING. ON THE WAY UP AND DOWN.
We made a new bike, and we think it's next to perfect. It handles like your favorite trail bike and climbs like it has a motor. It’s available in objectively cool colours. And it’s made in Canada. Introducing the all-new E-Troy Lite: it has a motor – a small one, but a good one.
An agile and light made-in-Canada frame
We took the "one bike, no excuses" personality of our Troy platform and crammed in just enough power to pack a noticeable punch on the way up, without weighing you down on descents. The Bosch Performance Line SX motor and 400Wh battery let you get the most of every ride. No matter how small the window to get out. And it’s compatible with a range extender that adds 250 Wh. So, you can take on proper rides without running out of juice.
HOW DOES IT STAND OUT?
At 42.99lbs, the E-Troy Lite is light. While it’s not "I can’t believe this thing has a motor" light, the bike feels perfectly balanced at all times. The power delivery is smooth. The suspension kinematics of the Split Pivot is specifically developed for mixed wheels and the added weight of the drive unit. This gives the bike a lively and natural feel, no matter where you point it.
We know there’s nothing magical about an e-bike: it’s a bike with a motor. But we believe there’s something special about a bike with a motor that rides like a bike without a motor. Take an E-Troy Lite out for a rip and see what you think. We think it could be the best bike we’ve ever made.
| S | M | L | XL | |
|---|---|---|---|---|
| A - ST (MM) | 400 | 420 | 460 | 495 |
| B - SA (DEG) | 77.9 | 77.8 | 77.6 | 77.5 |
| C - HA (DEG) | 63.6 | 63.6 | 63.6 | 63.6 |
| D - TT (MM) | 572 | 594 | 618 | 641 |
| E - REACH (MM) | 441 | 461 | 481 | 501 |
| F - CS (MM) | 438 | 438 | 438 | 438 |
| G - WB (MM) | 1216 | 1240 | 1264 | 1289 |
| H - BBH (MM) | 346 | 346 | 346 | 346 |
| I - SOH (MM) | 740 | 740 | 740 | 740 |
| J - STACK (MM) | 608 | 617 | 626 | 635 |
| K - HT (MM) | 95 | 105 | 115 | 125 |
| RIDER HEIGHT (CM) | 160-170 | 169-179 | 178-188 | 187-198 |
Specs
| Frame | Aluminum Optimum G04 150mm |
|---|---|
| Fork | RockShox Lyrik Select+ | Charger3.1 |RC2 | DB|160 | 44Offset |
| Rear Shock | Rockshox Super Deluxe Ultimate | 185x55 Trunnion |
| Rims | RaceFace AR30 29 | 30mm inner | TR/RaceFace AR30 27.5 | 30mm inner |
| Hubs | Dtswiss 370 Classic | 15x110 Boost | 6bolts | 32H/Dt Swiss 370 Classic | 12x148 Boost |
| Spokes | Sapim Stainless 14G w/Nylok |
| Tires | Maxxis Assegai | 29x2.5WT | 3C | Exo+ | TR | MaxxTerra/Maxxis Minion DHR II | 27.5x2.5 | 3C | EXO+ | TR | MaxxTerra |
| Chainrings | Sram XX Eagle 34T Bosch EMTB |
| Shifters | SRAM AXS POD | 12s |
| Rear Derailleur | SRAM S1000 Eagle AXS | T-Type | 12s |
| Cassette/Freewheel | SRAM XS1270 T-TYPE | 12s | 10-52T |
| Chain | SRAM Eagle 70 |
| Brakes | SRAM Code Bronze |
| Rotors | SRAM Centerline | 220mm |
| Handlebars | RaceFace Turbine R35 | B:35mm | W:800mm |
| Tape/Grips | Devinci | w/lock-on |
| Stem | V2 Pro | B:35mm | L:40mm | 0° |
| Headset | FSA Orbit | 1.5 | Zero Stack |
| Seatpost | SDG Tellis 31.6mm |
| Saddle | SDG BELAIR Max eMTB |
| Motor | Bosch Performance Line SX | 55NM | 600W |
| Battery | Bosch CompactTube 400 | 36V | 400 Wh |
| Controller/Display | BOSCH System controller BRC3100 |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Sea Green / Small / 29-inch front / 27.5-inch rear | 883385243770 | FE24072273 |
| Sea Green / Medium / 29-inch front / 27.5-inch rear | 883385238370 | FE24072373 |
| Sea Green / Large / 29-inch front / 27.5-inch rear | 883385238844 | FE24072473 |
| Sea Green / X-Large / 29-inch front / 27.5-inch rear | 883385239711 | FE24072573 |
