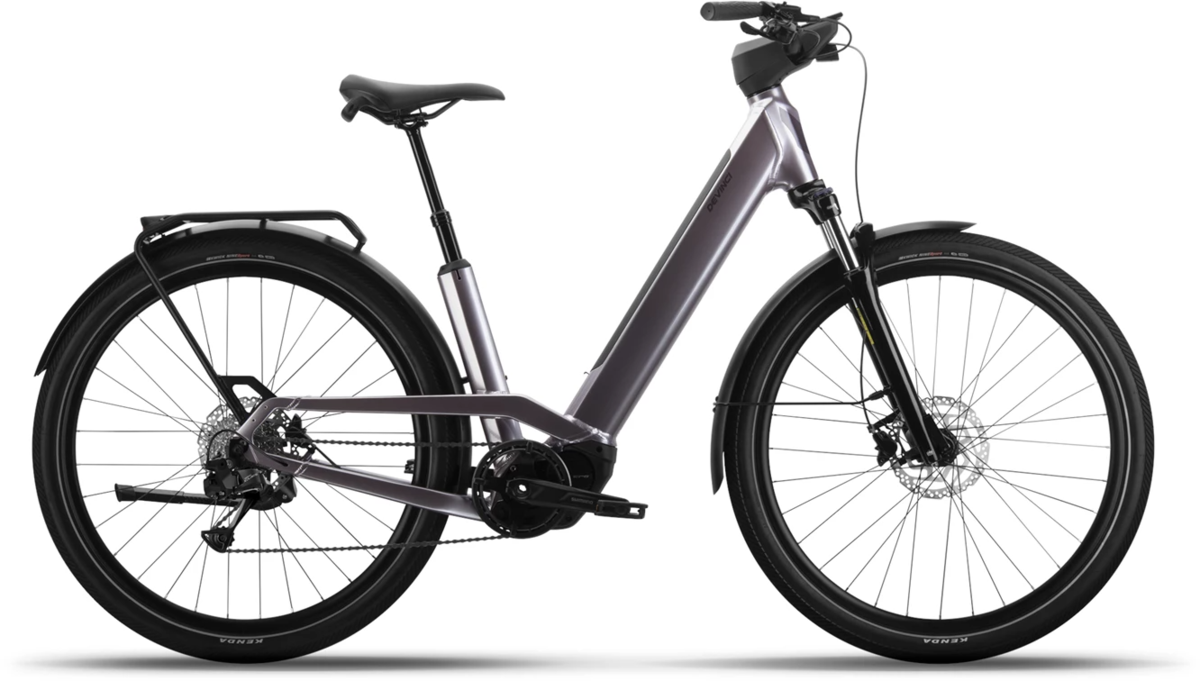

Devinci E-Griffin Step Thru EP6 540Wh
$3,999.99
$4,699.99
Details
The E-Griffin takes the guesswork out of city and leisure biking. It's built around a powerful Shimano Steps motor for reliable power on demand. No detail of the bike was overlooked. From the integrated handlebar display to the powerful hydraulic brakes, suspension fork and step-thru frame, it's tailored to the needs and style of riding style. So you can ride often, with confidence.
| SIZE | One size |
|---|---|
| A - Seat Tube (MM) | 400 |
| B - Seat Tube Angle (°) | 73 |
| C - Head Tube Angle (°) | 68 |
| D - Top Tube (MM) | 621 |
| E - Reach (MM) | 415 |
| F - Chain Stay (MM) | 480 |
| G - Wheelbase (MM) | 1181 |
| H - BB Height (MM) | | 295 |
| I - Standover Height (MM) | 455 |
| J - Stack (MM) | 671 |
| K - Head Tube (MM) | 170 |
| Rider Height (CM) | 152-174 |
| SIZE | ONE SIZE |
|---|---|
| CM | 152-174 |
| INCHES | 5' - 5'9" |
Specs
| Frame | Aluminum Optimum S03 |
|---|---|
| Fork | Suntour NVX30 NLO | 80mm |
| Rims | V2 Comp | 23mm inner |
| Hubs |
Front: Formula Disc sealed Rear: Formula EHL-135S | Sealed | 6bolts | 10x135mm | HG |
| Spokes | Stainless 14G |
| Tires | Kenda KwickNine | 29x2.2 | SRC |
| Crankset | Shimano STEPS CRET600 | 38T Single chain guard |
| Shifters | Shimano Cues U4000 | 9s |
| Rear Derailleur | Shimano Cues U4000 | 9s |
| Cassette/Freewheel | Shimano Cues 9s 11-41T |
| Chain | Shimano LG500 | 9/10/11s |
| Brakes | Shimano MT201/MT200 | 2 Pistons |
| Rotors | Shimano RT26 | 180mm |
| Handlebars | V2 Comp |
| Tape/Grips | Velo Ergo Comfort |
| Stem | TranzX I-Alloy | B:31.8mm | 70mm | 7° |
| Headset | FSA Custom |
| Seatpost | TranzX Dropper 31.6mm 1xLever |
| Saddle | Devinci |
| Pedals | Wellgo C211DU |
| Accessories & Extras | Front & Rear Fender: Sunny Wheel |
| Motor | Shimano STEPS EP600 | 250W | 85Nm |
| Battery | BMZ Gen2 540Wh |
| Controller/Display | Shimano STEPS EN610 |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Morning Dew / One Size | 883385215012 | FE23074311 |
