Details

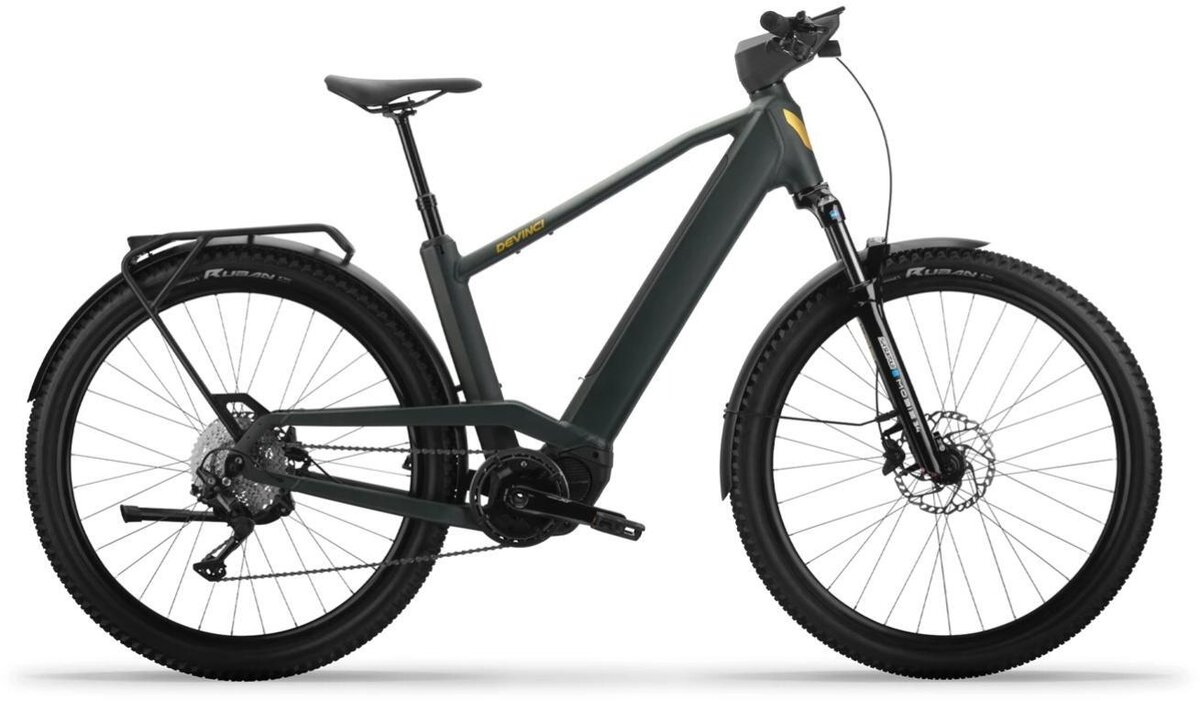

The E-Cartier is part of a new wave of hard-working, fun-loving bikes. Whether you're getting around the city, commuting, or trying to take the bike instead of the car. The powerful Shimano Steps motor and straight handlebars deliver a sporty ride and reliable power. The fully integrated design means that all the key accessories, like a digital display, rack, fenders, lights, and stand, come standard – all without looking or feeling clunky. No matter where you’re headed, the E-Cartier will boost your ride.
Specs
| Frame | Aluminum Optimum S03 |
|---|---|
| Fork | Suntour Mobie 34 100mm w/Preload adjuster |
| Rims | V2 Comp 700c | 23mm inner |
| Hubs |
FRONT HUB: Formula | DC-71 | Sealed | 6bolts TA 15x100mm REAR HUB: Formula EHL-135S | Sealed | 6bolts | 10x135mm | HG |
| Spokes | Stainless 14G |
| Tires | Continental Ruban | Reflex | 29x2.30 |
| Crankset | Shimano M8150 |
| Chainrings | Shimano E-BIKE SYSTEMS CRET600 | 38T Single chain guard |
| Shifters | Shimano Deore M5100 | 11s |
| Rear Derailleur | Shimano Deore M4120 | 10/11s |
| Cassette/Freewheel | Shimano SLX 11s 11-40T |
| Chain | Shimano HG601 | 11s |
| Brakes | Shimano Deore M4100/MT410 | 2 Pistons |
| Rotors | Shimano RT66 | 180mm |
| Handlebars | V2 Comp | 680mm | 25mm rise | 9° backsweep |
| Tape/Grips | Soft Comfort | Single lock |
| Stem | TranzX I-Alloy | B:31.8mm | 70mm | 7° |
| Headset | FSA Custom |
| Seatpost | TranzX Dropper 31.6mm 1xLever |
| Saddle | Devinci |
| Pedals | Wellgo C211DU |
| Accessories & Extras | FRONT FENDER: Sunny Wheel, REAR FENDER: Sunny Wheel, KICKSTAND: Kickstand Devinci Black |
| Motor | Shimano E-BIKE SYSTEMS EP801 | 250W | 85Nm |
| Battery | BMZ Gen2 725Wh |
| Controller/Display | Shimano E-BIKE SYSTEMS EN610 |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Green Gold / Small / 29-Inch | 883385225493 | FE230712B2 |
| Green Gold / Medium / 29-Inch | 883385225479 | FE230713B2 |
| Green Gold / Large / 29-Inch | 883385225462 | FE230714B2 |
