Details

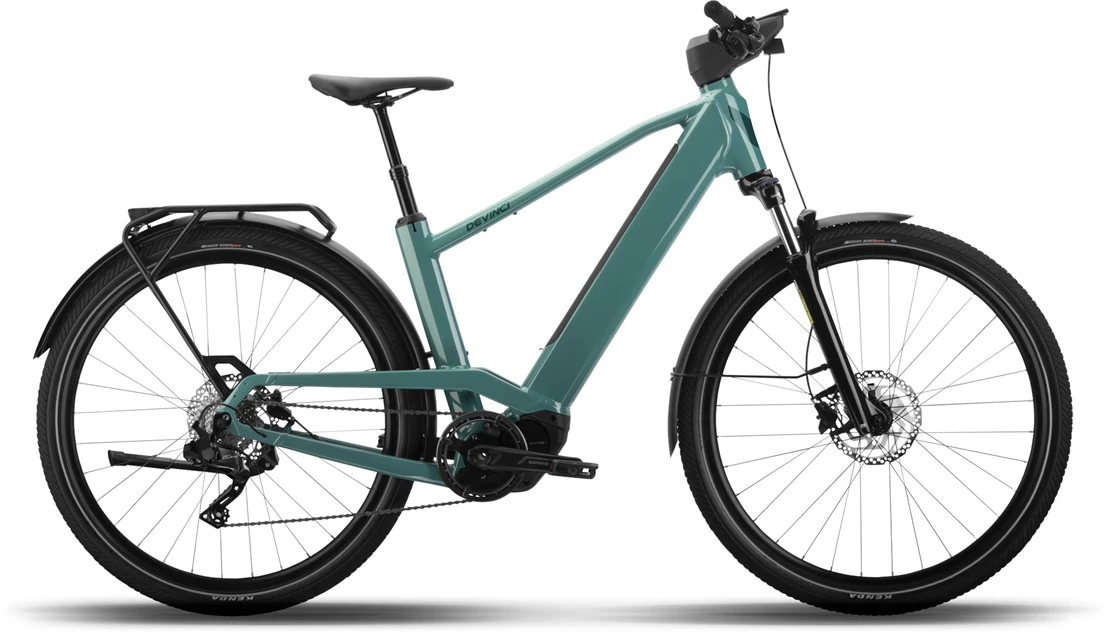

THE DO-IT-ALL URBAN E-BIKE
The E-Cartier is part of a new wave of hard-working, fun-loving bikes. Whether you're getting around the city, commuting, or trying to take the bike instead of the car. The powerful Shimano Steps motor and straight handlebars deliver a sporty ride and reliable power. The fully integrated design means that all the key accessories, like a digital display, rack, fenders, lights, and stand, come standard, all without looking or feeling clunky. No matter where you’re headed, the E-Cartier will boost your ride.
Technologies:
MOTOR
The Shimano EP6 motor is designed for optimal power, maximum distance and fun. It's extremely lightweight at only 2.88kg and incredibly durable in all weather conditions thanks to its moulded protector.
INTEGRATED COCKPIT
Protects cables and electronics from the elements in a clean design. The smooth internal cable lines also provide better shifting over time compared to other integrated systems.
INTEGRATED DISPLAY
Let’s you customize the ride data you view and how you view it. Speed, distance, trip time, clock, gear, estimated range, battery indication… The choice is yours.
BATTERY
Ultra long-lasting 540 Wh battery uses the latest 21700 cell technology. It holds 30% more energy and delivers optimal performance in all weather conditions.
INTEGRATED LIGHTS
Safety on the road comes standard, so you can enjoy the ride, day or night.
FRONT SUSPENSION AND DROPPER SEATPOST
100 mm of suspension for added comfort and control, even at full speed. A dropper seatpost lets you easily put your feet on the ground when you stop.
HYDRAULIC DISC BRAKES
All-weather performance.
WIDE TIRE CLEARANCE
Large volume tires will get you where you’re going with added comfort and control. Frame fits up to 29 x 2.4’’ tires.
INTEGRATED ACCESSORIES
Everything you need for a seamless ride comes standard. Hit the road with fenders, rear rack and a solid e-bike kickstand for when you’re not riding
INTEGRATED TROUSER GUARD
The lower position of the seat stay function as a chain guard and prevents your pants rubbing on the chain.
INTERNAL CABLE ROUTING
Protects cables from the elements and gives the frame a clean look.
LIFETIME WARRANTY
Riding passions last a lifetime. Now your bike does too.
REMOVABLE BATTERY
The drop-down style battery is easy to remove and is kept secure with a key lock.
| S | M | L | |
|---|---|---|---|
| A - ST (MM) | 400 | 460 | 525 |
| B - SA (DEG) | 73 | 73 | 73 |
| C - HA (DEG) | 68 | 68 | 68 |
| D - TT (MM) | 622 | 638 | 654 |
| E - REACH (MM) | 420 | 430 | 440 |
| F - CS (MM) | 480 | 480 | 480 |
| G - WB (MM) | 1181 | 1199 | 1216 |
| H - BBH (MM) | 295 | 295 | 295 |
| I - SOH (MM) | 695 | 750 | 810 |
| J - STACK (MM) | 662 | 680 | 699 |
| K - HT (MM) | 160 | 180 | 200 |
| RIDER HEIGHT (CM) | 152-168 | 168-180 | 180-193 |
Specs
| Frame | Aluminum Optimum S03 |
|---|---|
| Fork | Suntour NVX30 NLO | 80mm |
| Rims | V2 Comp 700c | 23mm inner |
| Hubs | FRONT HUB Formula Disc sealed/REAR HUB Formula EHL-135S | Sealed | 6bolts | 10x135mm | HG |
| Spokes | Stainless 14G |
| Tires | Kenda KwickNine | 29x2.2 | KS |
| Crankset | Shimano EM600 |
| Chainrings | Shimano E-BIKE SYSTEMS CRET600 | 38T Single chain guard |
| Shifters | Shimano Cues U4000 | 9s |
| Rear Derailleur | Shimano Cues U4000 | 9s |
| Cassette/Freewheel | Shimano Cues 9s 11-41T |
| Chain | Shimano LG500 | 9/10/11s |
| Brakes | FRONT BRAKE Shimano MT201/MT200 | 2 Pistons/REAR BRAKE Shimano MT-201 |
| Rotors | Shimano RT26 | 180mm |
| Handlebars | V2 Comp | 680mm | 25mm rise | 9° backsweep |
| Tape/Grips | Soft Comfort | Single lock |
| Stem | TranzX | B:31.8mm | 6° |
| Headset | FSA Custom |
| Seatpost | TranzX Dropper 31.6mm 1xLever |
| Saddle | Devinci |
| Pedals | Wellgo B123 |
| Accessories & Extras | Kickstand Devinci Black, FRONT FENDER: Sunny Wheel, FRONT FENDER: Sunny Wheel, KICKSTAND: Kickstand Devinci Black |
| Motor | Shimano E-BIKE SYSTEMS EP600 | 250W | 85Nm |
| Battery | BMZ Gen2 540Wh |
| Controller/Display | Shimano E-BIKE SYSTEMS EN610 |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Green Lux / Small / 29-inch | 883385240830 | FE24071213 |
| Green Lux / Medium / 29-inch | 883385223314 | FE24071313 |
| Green Lux / Large / 29-inch | 883385247952 | FE24071413 |
